ADMIX ADMIXER
ADMIX ADMIXER STATIC MIXER & BLENDER
The Admixer is an all-stainless sanitary static mixer and blender ideal for processing miscible fluids regardless of flow rates, viscosity, or density. This mixer is perfect for the instant dilution of juice concentrates, flavors, or colorants in prepared foods; tomato paste cutting; or the gentle heating of chocolate syrups. As a result, its low shear characteristics also gently blend fruit into yogurt and evenly distribute jelly within molten peanut butter.

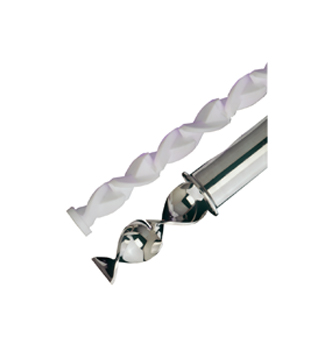

Now the concept behind this static mixer is simple: fluid flowing through a pipe is channeled through a geometric arrangement of mixing elements. The element geometry within the housing causes the flow to divide, mix, divide again, and mix again until complete.
The flow then continues in a pipe as going through conventional batch mixing in tanks, with the distinct difference that the degree of homogeneity is precisely controlled within the sanitary static blender.
BENEFITS OF ADMIX ADMIXER
HOW STATIC MIXER & BLENDER WORKS
The Admixer static mixer and blender excel at processing any combination of miscible fluids. Where laminar flow exists, complete homogeneity is achieved through geometrically precise flow division regardless of viscosity, density, or velocity. In turbulent flow, the Admixer utilizes radial momentum and inertia reversal to eliminate stratification of flow, temperature gradients, and processed material variations.
For difficult mixing requirements involving immiscible fluids, gas, and fluids, or other 2- and 3-phase operations, the Admixer static mixer approaches ideal plug flow combined with very uniform shear. This unique combination provides predictable droplet size formation and distribution for creating fine dispersion and stable emulsions. Where heating or cooling of fluids is critical, the Admixer will increase the heat transfer rate while eliminating temperature and velocity irregularities.
The Admixer static mixer geometry is designed to produce optimal performance and reproducible manufacturing techniques. It can completely blend, disperse, react or heat two or more fluids in a short length of pipe. To achieve these results, the Admixer relies on the principles of radial momentum transfer, flow division, and inertia reversal. These transport mechanisms eliminate concentration, velocity, and thermal gradients.
While many geometric shapes are used to create homogeneous flow, the degree of energy and mixing efficiency is not addressed. Thus, by using an elliptical or helical shape, smooth transitions are possible and no energy is wasted in back mixing. Triangular risers are in use to connect the angled elliptical shapes to prevent eddy dissipation at the element edges.
When in laminar flow, two or more fluids will remain adjacent to each other indefinitely unless disrupted. Therefore, the mixing elements divide the fluids and reorient by 180 degrees, by reversing from left hand to right-hand orientation, the rapid reversal at the interface enhances the mixing effect.
